Lab: Policy Request Automation

Lab Overview

What You’ll Learn:

Prepare FortiManager with a policy package and database script
Configure FortiSOAR with the ZTP Solution Pack and connector
Trigger and monitor a playbook that automatically creates firewall policies

Tested Versions: FortiManager 7.6.5 · FortiSOAR 7.6.5 · ZTP Solution Pack 1.0.

How It Works

This automation demonstrates how FortiSOAR creates firewall policies on FortiManager from structured request records. The flow is:

A Policy Package is prepared in FortiManager
FortiSOAR imports the automation playbook
A Policy Request record triggers the playbook
FortiSOAR connects to FortiManager via API and creates the requested policy
FortiSOAR prompts the user to confirm the policy push to the FortiGate

Part 1: FortiManager Setup

Task 1.1: Create a Policy Package

Log into FortiManager

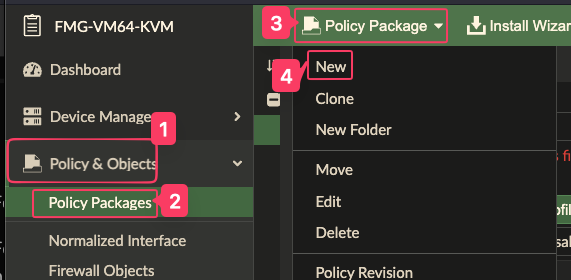

Navigate to Policy & Objects → Policy Packages

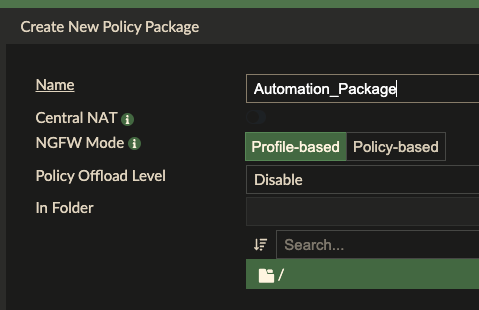

Click Policy Package > New and name it Automation_Package.
Click OK to create the package.
Assign an installation target to the package so we can test installing it later on.

Task 1.2: Create and Run a Database Script

The script initializes the policy table inside the package.

Navigate to Device Manager → Scripts
Click Create New > Script

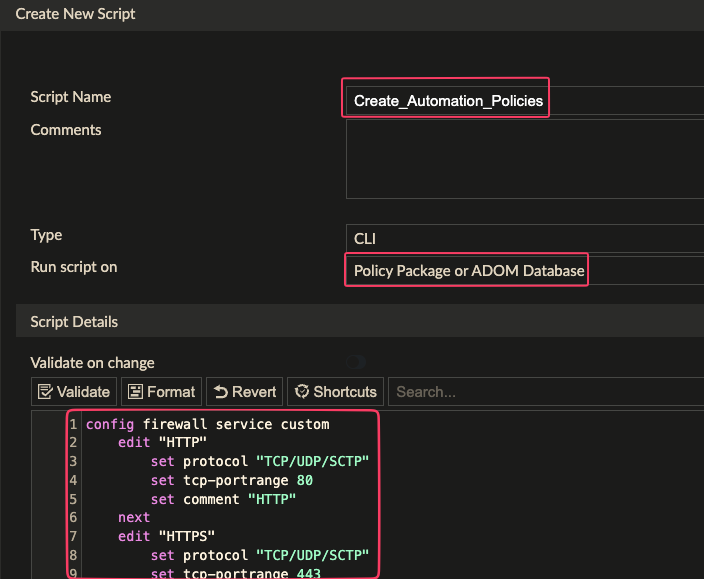

Name it Create_Automation_Policies, with Run script on as Policy Package or ADOM Database, and with this content:

config firewall service custom
    edit "HTTP"
        set protocol "TCP/UDP/SCTP"
        set tcp-portrange 80
        set comment "HTTP"
    next
    edit "HTTPS"
        set protocol "TCP/UDP/SCTP"
        set tcp-portrange 443
        set comment "HTTPS"
    next
    edit "DNS"
        set udp-portrange 53
        set comment "DNS"
    next
    edit "MySQL"
        set tcp-portrange 3306
        set comment "MySQL"
    next
    edit "SSH"
        set tcp-portrange 22
        set comment "SSH"
    next
    edit "LPD"
        set tcp-portrange 515
        set comment "LPD"
    next
    edit "IPP"
        set tcp-portrange 631
        set comment "IPP"
    next
        edit "IPSEC"
        set tcp-portrange 4500
        set comment "IPSEC"
    next
end
config firewall address
    edit Server001
        set type ipmask
        set subnet 192.168.0.10 255.255.255.255
    next
    edit PrinterOffice
        set type iprange
        set start-ip 10.0.2.50
        set end-ip 10.0.2.55
    next
    edit Users_Subnet
        set type iprange
        set start-ip 172.16.1.0
        set end-ip 172.16.1.255
    next
    edit PartnerNetworks
        set type fqdn
        set fqdn partners.example.net
    next
    edit VPN_Gateway
        set type ipmask
        set subnet 203.0.113.100 255.255.255.255
    next
    edit DMZ_Host001
        set type ipmask
        set subnet 192.168.50.100 255.255.255.255
    next
    edit IoT_Device001
        set type ipmask
        set subnet 10.10.5.20 255.255.255.255
    next
    edit Guest_Wireless
        set type ipmask
        set subnet 192.168.20.0 255.255.255.0
    next
    edit DatabaseServer
        set type ipmask
        set subnet 10.20.30.40 255.255.255.255
    next
    edit VoIP_Phone001
        set type ipmask
        set subnet 172.16.5.100 255.255.255.255
    next
    edit WebProxy
        set type iprange
        set start-ip 10.1.1.10
        set end-ip 10.1.1.20
    next
    edit Management_Server
        set type ipmask
        set subnet 192.168.100.200 255.255.255.255
    next
    edit IoT_Controller
        set type ipmask
        set subnet 10.10.5.10 255.255.255.255
    next
    edit Marketing_Department
        set type ipmask
        set subnet 172.16.20.0 255.255.255.0
    next
    edit Mail_Server
        set type ipmask
        set subnet 192.168.0.30 255.255.255.255
    next
    edit Video_Conference
        set type ipmask
        set subnet 10.50.100.150 255.255.255.255
    next
    edit PrintServer
        set type ipmask
        set subnet 192.168.0.55 255.255.255.255
    next
    edit Backup_Server
        set type ipmask
        set subnet 10.5.5.100 255.255.255.255
    next
    edit Engineering_Subnet
        set type ipmask
        set subnet 172.16.30.0 255.255.255.0
    next
    edit DNS_Server
        set type ipmask
        set subnet 192.168.0.5 255.255.255.255
    next
end
config firewall policy
    edit 1
        set srcintf internal
        set dstintf wan
        set srcaddr Users_Subnet
        set dstaddr all
        set action accept
        set schedule always
        set service ALL
        set logtraffic all
    next
    edit 2
        set srcintf internal
        set dstintf dmz
        set srcaddr Users_Subnet
        set dstaddr Server001
        set action accept
        set schedule always
        set service HTTP HTTPS
        set logtraffic all
    next
    edit 3
        set srcintf internal
        set dstintf port4
        set srcaddr Users_Subnet
        set dstaddr VPN_Gateway
        set action accept
        set schedule always
        set service IPSEC
        set logtraffic all
    next
    edit 4
        set srcintf dmz
        set dstintf internal
        set srcaddr Server001
        set dstaddr Users_Subnet
        set action accept
        set schedule always
        set service ALL
        set logtraffic all
    next
    edit 5
        set srcintf dmz
        set dstintf wan
        set srcaddr Server001
        set dstaddr all
        set action deny
        set schedule always
        set service ALL
        set logtraffic all
    next
    edit 6
        set srcintf internal
        set dstintf port4
        set srcaddr IoT_Device001
        set dstaddr all
        set action accept
        set schedule always
        set service DNS HTTP HTTPS
        set logtraffic all
    next
    edit 7
        set srcintf internal
        set dstintf internal
        set srcaddr Users_Subnet
        set dstaddr Guest_Wireless
        set action accept
        set schedule always
        set service HTTP HTTPS
        set logtraffic all
    next
    edit 8
        set srcintf internal
        set dstintf internal
        set srcaddr Guest_Wireless
        set dstaddr Users_Subnet
        set action accept
        set schedule always
        set service HTTP HTTPS
        set logtraffic all
    next
    edit 9
        set srcintf internal
        set dstintf dmz
        set srcaddr Marketing_Department
        set dstaddr Server001
        set action accept
        set schedule always
        set service HTTP HTTPS
        set logtraffic all
    next
    edit 10
        set srcintf internal
        set dstintf dmz
        set srcaddr Marketing_Department
        set dstaddr Server001
        set action accept
        set schedule always
        set service HTTP HTTPS
        set logtraffic all
    next
    edit 11
        set srcintf internal
        set dstintf wan
        set srcaddr Engineering_Subnet
        set dstaddr all
        set action accept
        set schedule always
        set service ALL
        set logtraffic all
    next
    edit 12
        set srcintf internal
        set dstintf dmz
        set srcaddr Engineering_Subnet
        set dstaddr Server001
        set action accept
        set schedule always
        set service SSH
        set logtraffic all
    next
    edit 13
        set srcintf dmz
        set dstintf internal
        set srcaddr Server001
        set dstaddr Engineering_Subnet
        set action accept
        set schedule always
        set service SSH
        set logtraffic all
    next
    edit 14
        set srcintf internal
        set dstintf wan
        set srcaddr DMZ_Host001
        set dstaddr all
        set action accept
        set schedule always
        set service HTTP HTTPS
        set logtraffic all
    next
    edit 15
        set srcintf internal
        set dstintf dmz
        set srcaddr DMZ_Host001
        set dstaddr Server001
        set action accept
        set schedule always
        set service HTTP HTTPS
        set logtraffic all
    next
    edit 16
        set srcintf internal
        set dstintf wan
        set srcaddr DatabaseServer
        set dstaddr all
        set action deny
        set schedule always
        set service ALL
        set logtraffic all
    next
    edit 17
        set srcintf internal
        set dstintf port4
        set srcaddr DatabaseServer
        set dstaddr all
        set action accept
        set schedule always
        set service MySQL
        set logtraffic all
    next
    edit 18
        set srcintf dmz
        set dstintf internal
        set srcaddr Server001
        set dstaddr Users_Subnet
        set action accept
        set schedule always
        set service HTTP HTTPS
        set logtraffic all
    next
    edit 19
        set srcintf internal
        set dstintf wan
        set srcaddr PrintServer
        set dstaddr all
        set action accept
        set schedule always
        set service LPD
        set logtraffic all
    next
    edit 20
        set srcintf internal
        set dstintf dmz
        set srcaddr PrintServer
        set dstaddr Server001
        set action accept
        set schedule always
        set service IPP
        set logtraffic all
    next
end

Click OK to save the script.

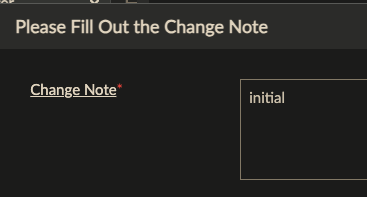

Fill in a change note if prompted

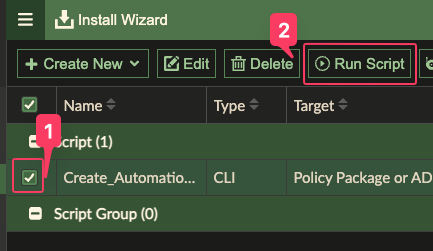

Select the script and click Run Script.

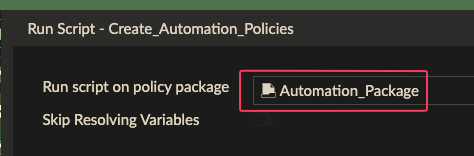

Select the Automation_Package and click Run Now

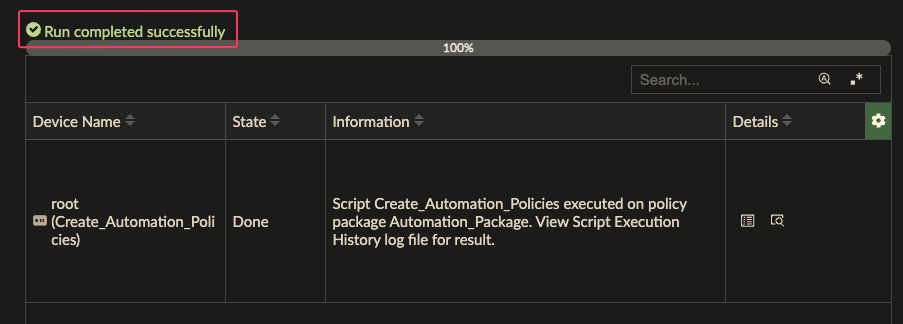

Expected Result: The script executes successfully and a policy table exists in the package.

Task 1.3: Record Required Values

Note these values — you’ll need them when configuring FortiSOAR:

Value	Your Entry
ADOM Name
Policy Package Name	`Automation_Package`

Part 2: FortiSOAR Setup

Task 2.1: Install the ZTP Solution Pack

Warning

The ZTP Solution Pack must be installed before importing the automation package.

Login to FortiSOAR as csadmin
Navigate to Content Hub → Solution Packs

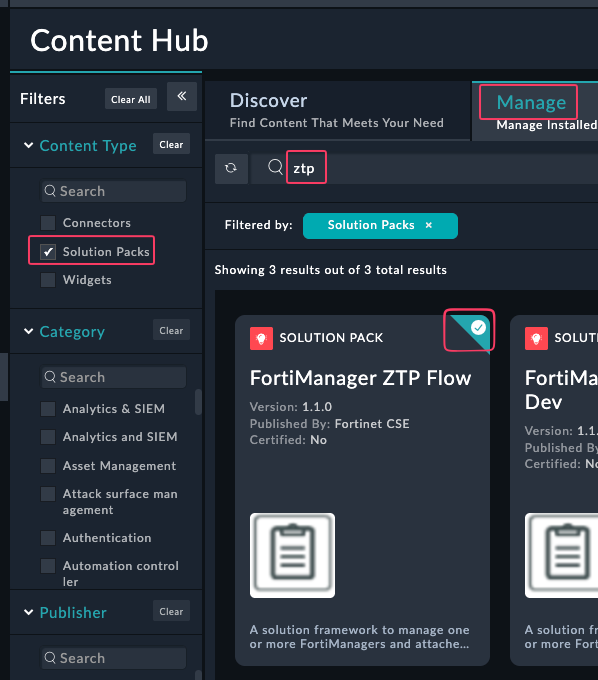

Confirm that FortiManager ZTP Flow Solution Pack is Installed

If you do not see the Solution Pack installed, Open the Pack and click Install.

Task 2.3: Enable Custom Connectors

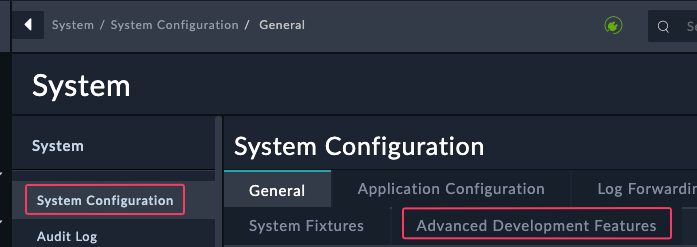

In the System Settings menu, click Advanced Developer Settings and enable the Custom Connectors feature.

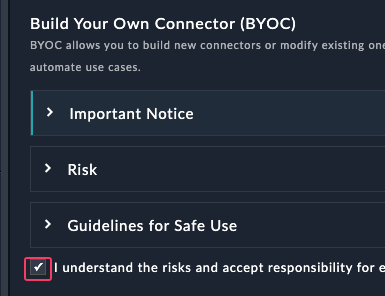

Click the checkbox under Build your own connector
Click Submit

Task 2.4: Import the Automation Package

Download the FortiSOAR Policy Request Automation Export-202603050614.zip file from this repository
Download me
Navigate to System Settings → Import Wizard

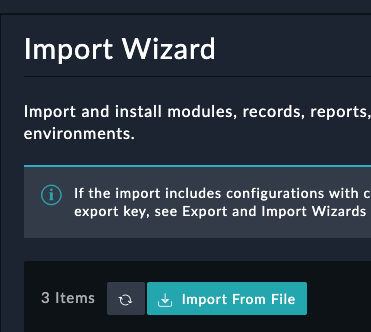

Click Import from File
Upload the .zip export file from this repository

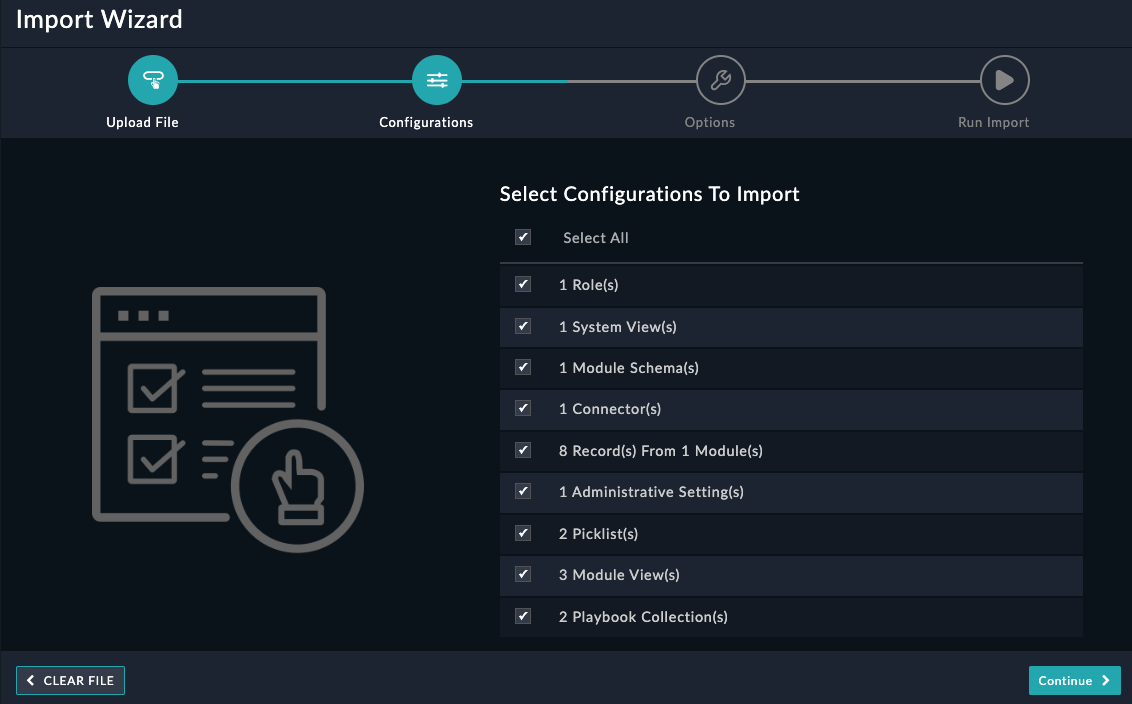

Click Continue

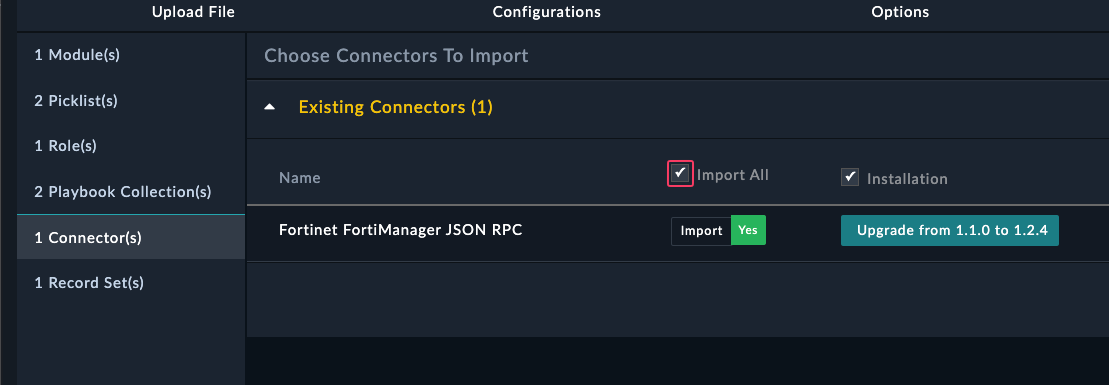

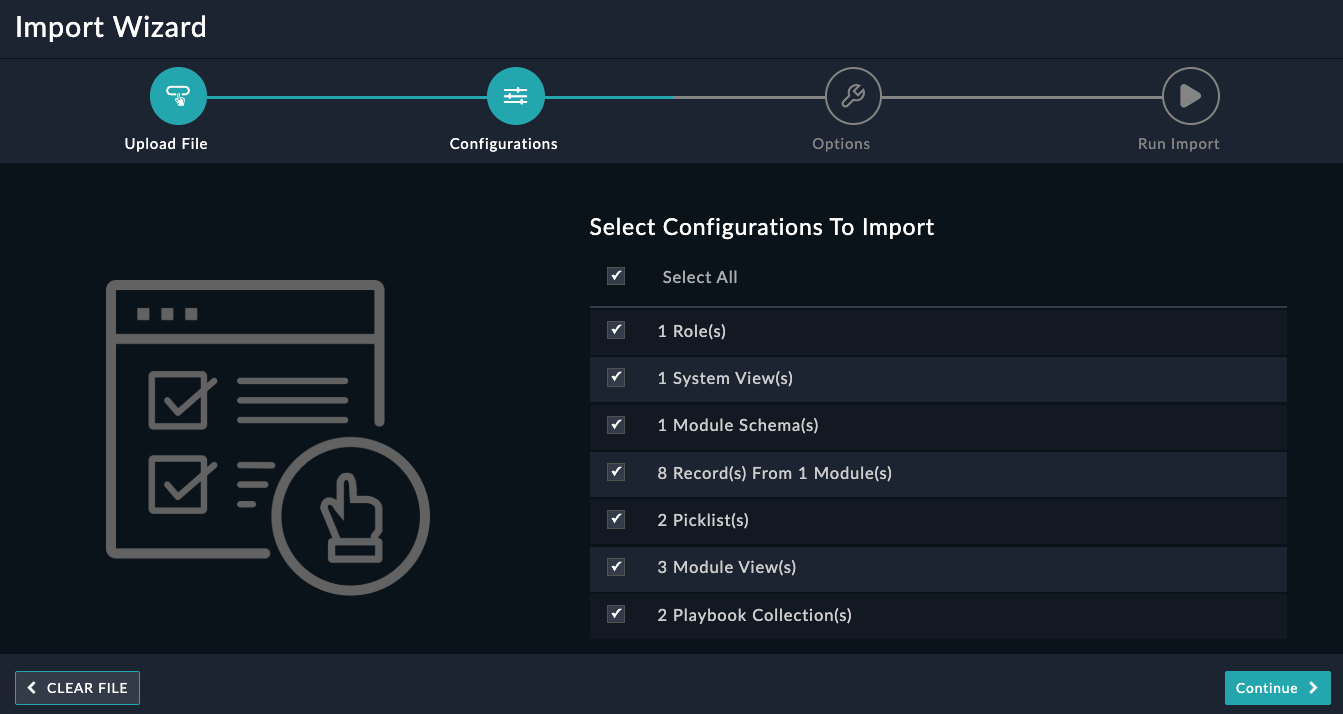

Click 0 Connectors and click Import All
Click Continue
Click Run Import
Click I have reviewed the changes - Publish
Wait for the import to complete

Task 2.5: Configure the Connector

Download the custom fortimanager connector here
Download me
- fortinet-fortimanager-json-rpc.tgz (57 KB)

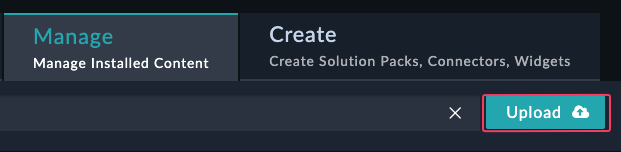

Open the Content Hub > Manage tab and click Upload > Upload Connector
Warning

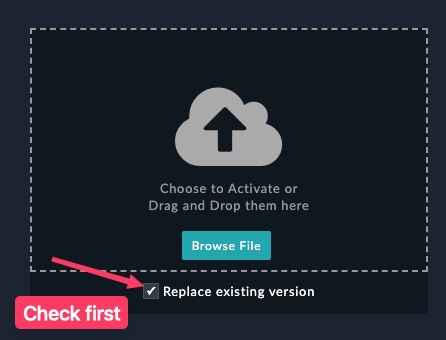

Do not upload the connector without first checking the box to Replace existing version
Click Replace existing version

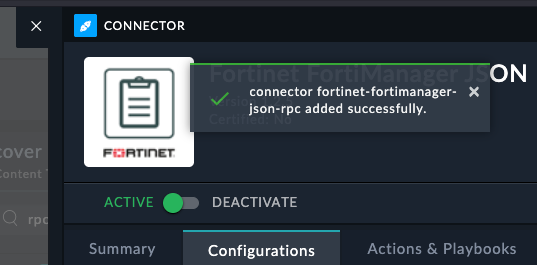

Upload the connector file you downloaded
Exit the connector

Task 2.2: Create a FortiManager Manager Record

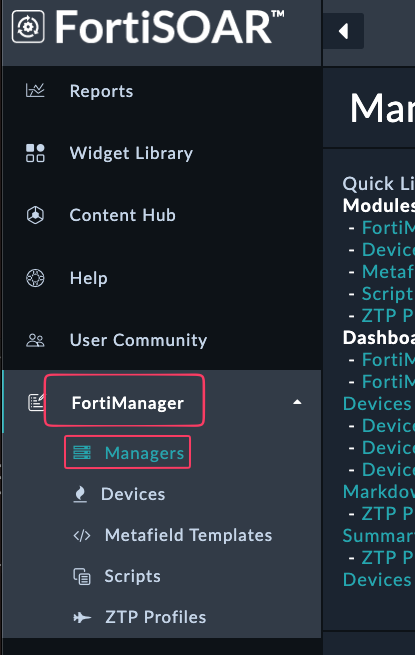

Using the left navigation menu, browse to FortiManger → Managers

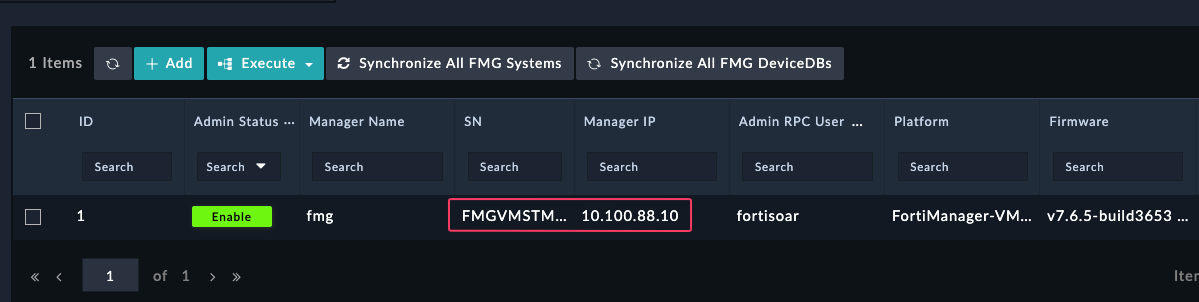

Confirm you see an entry in the table for a ForitManager record

If you do not see an entry:

Create a new FortiManager Manager entry by clicking +Add

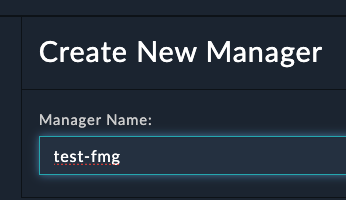

Fill in a manager-name and click Save
You should get a prompt to fill in the Device Details and click Continue
Note the Manager Name since it will be referenced by the connector

Create a connector config

Open the Manager Record

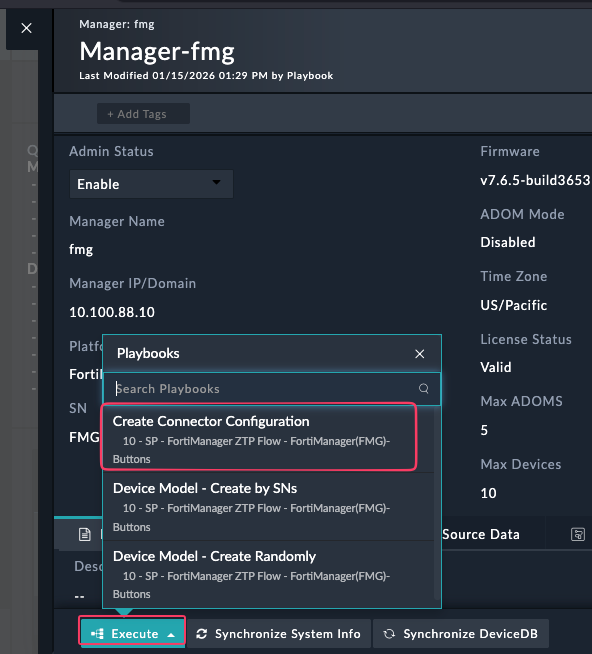

Click Execute > Create Connector Configuration
Type in the password for your fortmanger. In the FNDN lab it is fortinet. Click Continue
Go back to the Content Hub and confirm you see a config in your fortimanager json rpc connector

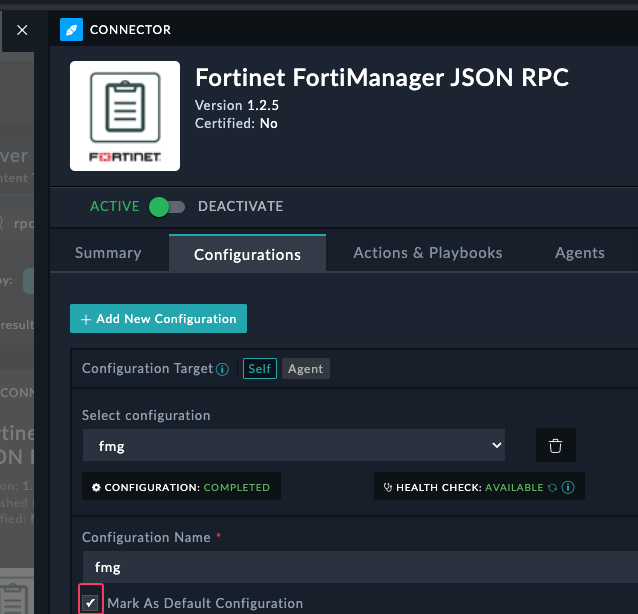

Make sure to mark the config as default by clicking the checkbox. Save the config

Part 3: Running the Automation

Task 3.1: Configure a Policy Request

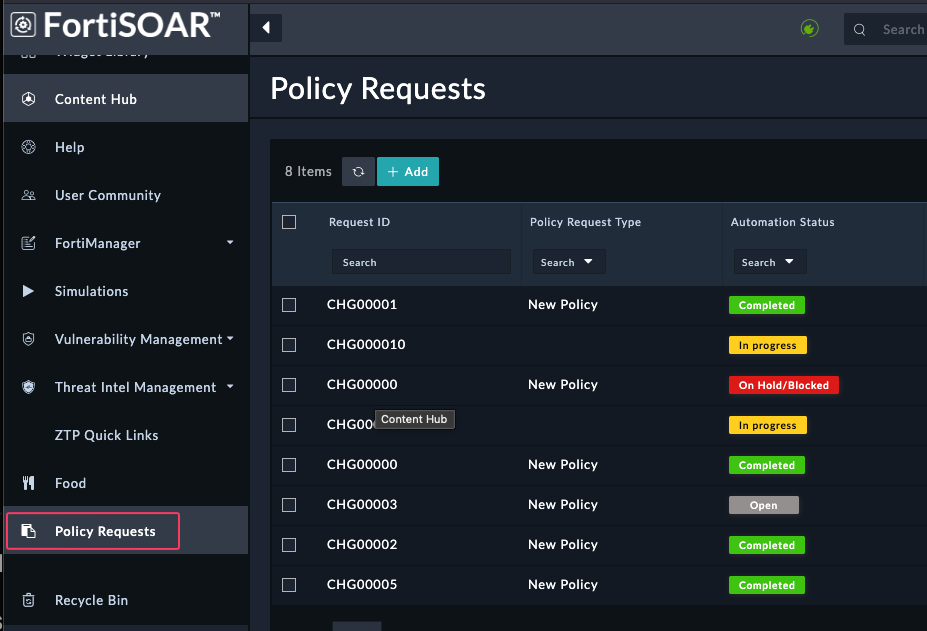

Navigate to the Policy Requests module, it should be at the bottom of the left navigation menu. You may have to scroll on the navigation menu to find it.
Open the CHG00001 record in the Policy Requests module
Update the following fields:

Field	Value

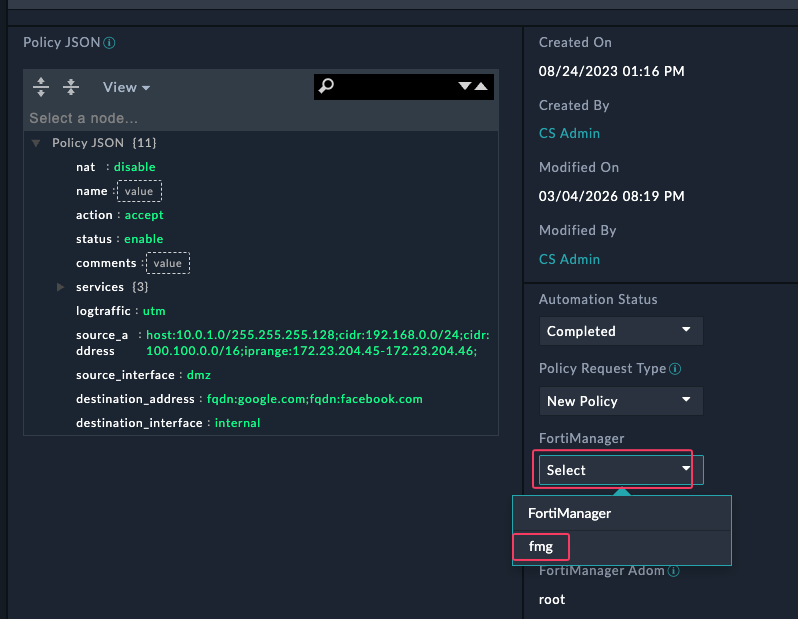

FortiManager	Select the Manager record you created
ADOM	Enter your ADOM name
Policy Package	`Automation_Package`

Task 3.2: Execute and Monitor the Playbook

Click Execute → Create Policy from Request and follow any prompts

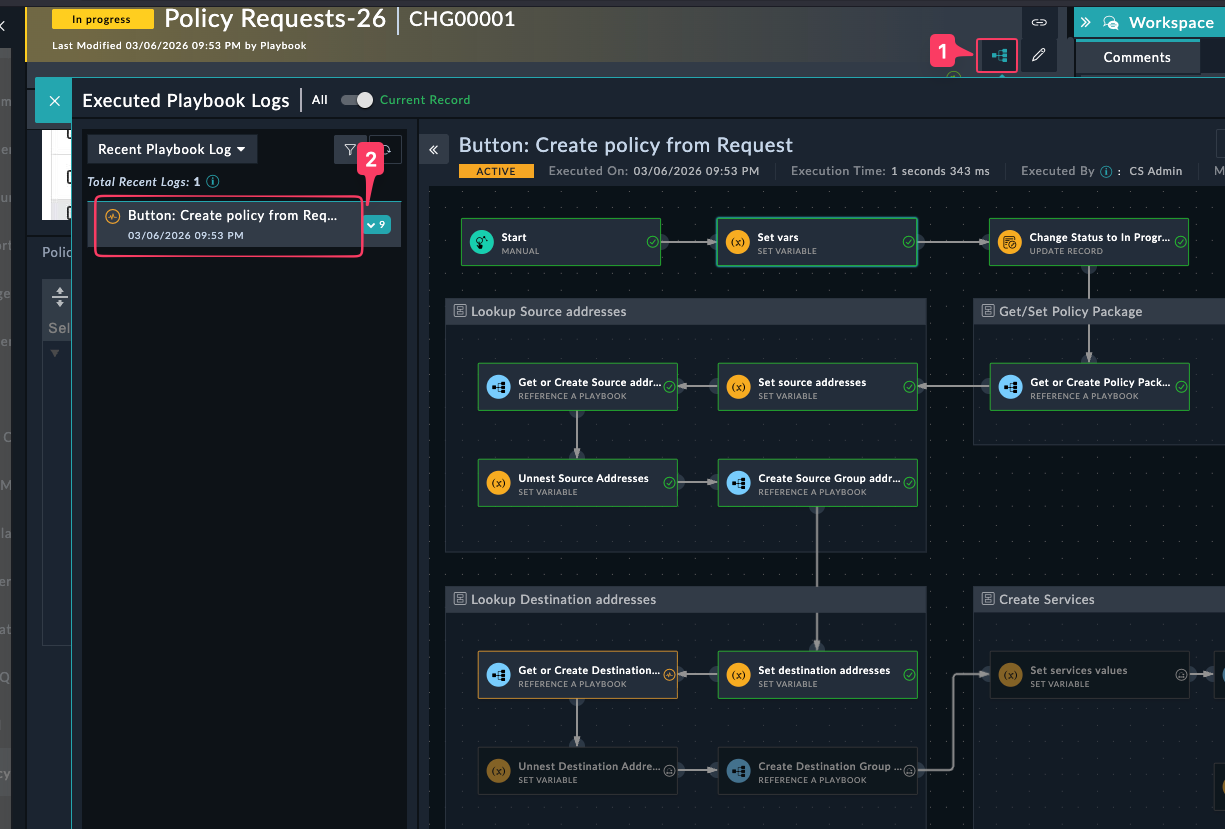

Navigate to Automation → Playbook Execution to monitor progress

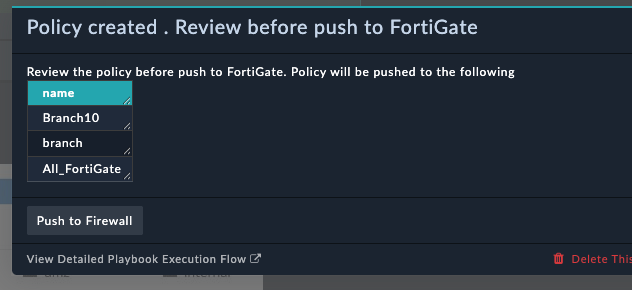

Once the playbook adds the policy, you will get a popup asking if you want to install the policy to the device based on the installation targets.
Click Push to firewall

You have now successfully configured FortiSOAR to automate policy creation and installation.
